Water Chillers

FOR ANY APPLICATION

THE BEST OVERALL VALUE IN THE INDUSTRY

Unparalleled Flexibility in Design

Choose the options needed for the ideal water chiller..

Standard Features: ​
​Available Options:
• ETL listed
• Remote Condenser Coil
• Microprocessor controller with touchscreen HMI
• STAINLESS STEEL, brazed plate evaporator with 1/2 inch insulation and secured in a steel bracket [1]
• Scroll compressor with crankcase heater
• Suction accumulator [1]
• Water flow switch
• Hot gas by-pass capacity control [1]
• 24V control transformer
• Direct drive condenser fan motor
• Rust resistant, high CFM, aluminum condenser fan blade
• Condenser(s): copper tube/aluminum fin
• Compressor motor contactor
• Condenser motor and control circuit fusing
• Painted, galvanized sheet metal cabinet
• 1/2 inch insulation on all water and refrigerant lines
• Liquid line drier, sightglass, solenoid, TEV
• Complete refrigerant charge from factory 407C standard [1]
• Extended warranty: See your quote or latest IOM booket
revision


[1] denotes optional items on most competing brands.
• 4 year extended compressor warranty
• Casters (factory mounted)
• 115 volt (rain tight) service outlet
• Fused disconnect
• Non-fused disconnect
• Phase monitor
• Compressor fusing
• Fan cycle control
• Flooded condenser with receiver/head pressure control (-20 °F)
• Heated, flooded condenser with receiver/head pressure control (-20 °F)
• Factory installed evaporator heat tape freeze protection
thermostatically controlled
• Water pressure gauge set
• Fused, STAINLESS STEEL system process pump
• Pump suction isolation valve
• Dual system pump with HMI programable changeover
• Low flow by-pass valve system pump required
• "Gold" finned condenser coil (coastal protection)
• "Copper" finned condenser coil (coastal protection)
• Heresite-coated condenser coil (coastal protection)
• Water flow meter
• Auto city water make up solenoid
• Storage tank sight glass (Tank models only)
• Tank low liquid level indicator (Tank models only)

Air-Cooled water chillers by far are the most common applications for process duty service. These industrial duty water chillers remove heat from your process and reject that heat to the outdoor air. Air-cooled process chillers tend to be easier and less expensive to service, cost less than water-cooled process chillers and offer a wide variety of options (such as economizers), providing excellent design flexibility.

Air-cooled water chillers can be configured as Packaged Chiller Systems or Split-Systems (Outdoor Condenser, Indoor Chiller).

NOT SURE WHAT YOU NEED?

Let us GUIDE your through the Chiller Quote Process

Step#1-The project SUCCESS meeting

A FREE 20 minute phone consultation with one of our chiller design engineers to determine your specific needs.

Step#2-Chiller design review

We review your customized chiller design with you and your team via GOTOMEETING. GOAL is to make sure you FEEL GOOD about your purchase.

Step#3-Post delivery meeting

A FREE 30 minute phone consultation with your design engineer covering installation, initial setup and maintenance.

Or Call - 877-988-5464

Markets we build for

Water chillers for medical imaging (MRI,CT, PET) and any water cooled devices
Water Chillers for semiconductor test and any other water cooled applications
Water cooled lasers for commercial, Industrial and medical applications.
Custom water chillers OEM volume accounts
Dairy chiller systems for commercial scale mike products production
Glycol Chillers for craft brewery and distilled spirit production

Here are some of out most popular Water Chillers

PZA - S
Air-Cooled , SINGLE Refrigeration Circuit, Scroll, Tankless

Model
* BTUH/Tonnage
Dims - L x W x H
Weight (LBS)
PZA1S14,200 / 1 ton chiller
36 x 34 x 44
260
PZA1.5S21,500 / 1.5 ton chiller
36 x 34 x 44
265
PZA2S24,100 / 2 ton chiller
36 x 34 x 44
265
PZA2.5S34,800 / 2.5 ton chiller
36 x 34 x 44
295

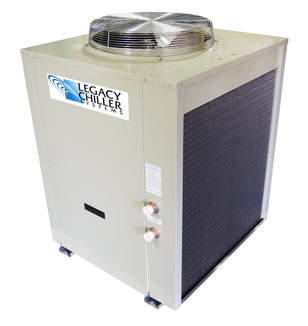

PZA3S39,200 / 3 ton chiller
36 x 34 x 48
490
PZA4S50,000 / 4 ton chiller
46 x 34 x 48
500
PZA4.5S54,000 / 4.5 ton chiller
46 x 34 x 48
500
PZA5S60,000 / 5 ton chiller
46 x 34 x 48
650
PZA7S81,000 / 5.5 ton chiller
75 x 34 x 50
650
PZA8S91,000 / 7 ton chiller
75 x 34 x 50
650
PZA9S106,000 / 8 ton chiller
75 x 34 x 50
690
PZA11S132,000 / 10 ton chiller
75 x 34 x 50
875

* Water chillers tonnages are approximate based on 45F water leaving the chiller. For water chiller cooling performs at your design conditions call: 530-903-4105 or set up a FREE PROJECT SUCCESS CONSULTATION with one of our process engineers.

PZA - D
Air-Cooled , DUAL Refrigeration Circuit, Scroll, Tankless

Model
Nominal BTUH @ 45F
Dims - L x W x H
Weight (LBS)
PZA7D
81,100 / 6 ton chiller
75 x 34 x 48
875
PZA9D
106,400 / 8 ton chiller
75 x 34 x 48
900
PZA9.5D
111,800 / 9.5 ton chiller
75 x 34 x 48
950
PZA10D
118,000 / 10 ton chiller
75 x 34 x 48
950
PZA13D
160,000 / 12 ton chiller
85 x 40 x 48
985
PZA15D
183,500 / 15 ton chiller
85 x 40 x 48
1000
PZA18D
​209,200 / 17 ton chiller
85 x 40 x 48
1100
PZA22D
264,200 / 22 ton chiller
66 x 75 x 51
1150

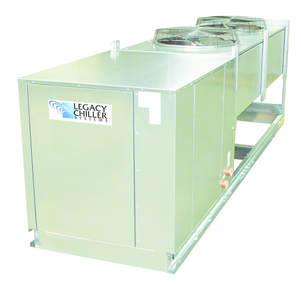

PZA26D
302,000 / 25 ton chiller
180 x 46 x 54
2600
PZA35D
406,000 / 33 ton chiller
180 x 88 x 54
2900
PZA43D
500,000 / 42 ton chiller
180 x 88 x 54
3200
PZA52D
612,000 / 50 ton chiller
180 x 88 x 54
4000

* Water chillers tonnages are approximate based on 45F water leaving the chiller. For water chiller cooling performs at your design conditions call: 530-903-4105 or set up a FREE PROJECT SUCCESS CONSULTATION with one of our process engineers.

PZAT - S
Air-Cooled , SINGLE Refrigeration Circuit, Scroll, Internal SS tank

Model
Nominal BTUH @ 45F
Dims - L x W x H
Weight (LBS)
PZAT1S
14,200 / 1 ton chiller
36 x 34 x 68
550
PZAT1.5S
18,000 / 1.5 ton chiller
36 x 34 x 68
600
PZAT2S
22,000 / 2 ton chiller
36 x 34 x 68
650
PZAT2.5S
28,800 / 2.5 ton chiller
36 x 34 x 68
700
PZA3TS
36,000 / 3 ton chiller
36 x 34 x 68
800
PZAT4S
49,200 / 4 ton chiller
46 x 34 x 72
850
PZAT4.5S
51,600 / 4.5 ton chiller
46 x 34 x 72
875
PZAT5S
55,200 / 5 ton chiller
46 x 34 x 72
900
PZAT7S
75,600 / 6 ton chiller
75 x 34 x 72
1100
PZAT8S
84,000 / 7 ton chiller
75 x 34 x 72
1150
PZAT9S
98,400 / 7.5 ton chiller
75 x 34 x 72
1250
PZAT11S
122,400 / 10 ton chiller
75 x 34 x 72
1300

* Water chillers tonnages are approximate based on 45F water leaving the chiller. For water chiller cooling performs at your design conditions call: 530-903-4105 or set up a FREE PROJECT SUCCESS CONSULTATION with one of our process engineers.

PZAT - D
Air-Cooled , Dual Refrigeration Circuit, Scroll, Internal SS tank

Model
Nominal BTUH @ 45F
Dims - L x W x H
Weight (LBS)
PZAT7D
73,200 / 6 ton chiller
75 x 34 x 77
1100
PZAT9D
96,000 / 8 ton chiller
75 x 34 x 77
1200
PZAT9.5D
102,000 / 8.5 ton chiller
75 x 34 x 77
1250
PZAT10D
108,000 / 9 ton chiller
75 x 34 x 77
1250
PZAT13D
147,000​ / 12 ton chiller
85 x 40 x 77
1300
PZAT13D
167,000 / 14 ton chiller
85 x 40 x 77
1400
PZAT18D
190,800 / 15 ton chiller
85 x 40 x 77
1450
PZAT22D
246,000 / 20 ton chiller
75 x 66 x 76
2200

* Water chillers tonnages are approximate based on 45F water leaving the chiller. For water chiller cooling performs at your design conditions call: 530-903-4105 or set up a FREE PROJECT SUCCESS CONSULTATION with one of our process engineers.
